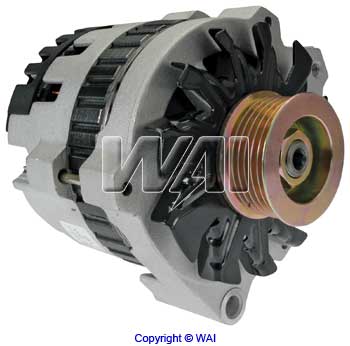

WAI 20-143-21-1 Alternator

WAI 20-143-21-1 Alternator

Alternator - Delco CS130 Series
100-105 Amp/12 Volt, CW, 6-Groove/56mm OD Pulley, 07:00 Plug Clock
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

010264

DA SILVA 010264 Alternator

L611552

BTS Turbo L611552 Alternator

LRB00122

LUCAS ELECTRICAL LRB00122 Alternator

ABO258C

AUTOTEAM ABO258C Alternator

L 40 845

ATL Autotechnik L 40 845 Alternator

RA22441

DELCO REMY RA22441 Alternator

8600684

DELCO REMY 8600684 Alternator

112494

FARCOM 112494 Alternator

2251451502

DRI 2251451502 Alternator

8EL 737 047-001

HELLA 8EL 737 047-001 Alternator

28-3898

ELSTOCK 28-3898 Alternator

2010135.2

SANDO 2010135.2 Alternator
     配件名称:WAI编号:零件所在位置:
                Retainer, Bearing, Alt46-1505FRAME, DE
                                Bobbin, Rotor
                                Sleeve, Packaging89-916
                        Coil, Rotor
                        Core, Rotor
                        Frame, DE, Blank, Alt
                        Pole Piece, Rotor
                        Screw84-1234
                        Screw85-1337
                        Slip Ring, Rotor28-1854
                Bearing, Ball6-203-4
                Bearing, Ball6-203-4FRAME, DE
                Brush Holder, Alt39-1203-3
                Brush, Alt38-115
                Brush, Alt38-116
                Capacitor
                Case, Reg
                Clip, Alt
                Coil & Core, Rotor
                Connector, Alt46-1313LEAD, STATOR
                Cover, Alt
                Cover, Alt46-1858
                Diode
                Fan, Rotor28-1401REAR POLE PIECE
                Fixture, TesterDT350-9
                Fixture, TesterVRC101-9
                Frame, DE, Alt21-123
                Grease, Heat Transfer89-252
                Harness, Repair, Alt46-1803
                Heat Sink, Neg
                Heat Sink, Pos
                Insulator, Alt42-1309
                Insulator, Rect
                Lamination, Stator
                Nut85-2300
                Pad, Rect
                Pin, Alt
                Pin, Alt46-1861
                Pin, Alt39-1501
                Plug, Adapter, Alt
                Pole Piece, Rotor
                Repair Pin, Alt46-1864
                Repair Pin, Alt46-1865
                Retainer, Bearing, Alt46-1507
                Retainer, Bearing, Alt46-1507FRAME, DE
                Retainer, Bearing, Alt46-1505
                Screw84-1351
                Screw84-1351RETAINER, BEARING
                Shaft, Rotor28-1705
                Slip Ring, Rotor28-1854
                Spacer, Alt46-2602
                Spring, Brush, Alt39-1701
                Terminal, Battery, Alt46-1168
                Terminal, Rect
                Test Lead, AltWAA9SI
                Tester, Regulator/Rect
        Baffle, SRE, Alt46-1856
        Bearing, Ball6-100-4FRAME, SRE
        Brush Holder Assy, Alt39-106
        Cover, Alt46-1401FRAME, SRE
        Fan, Alt25-108
        Frame, DE, Alt21-123
        Frame, SRE22-126
        Nut84-2700PULLEY
        Pulley24-1255-3
        RectifierDR4000
        Regulator, AltD411HD-1
        Rotor28-124-2
        Screw85-1200BRUSH HOLDER
        Screw85-1200RECTIFIER
        Spacer, Alt46-1616-2FAN
        Spacer, Alt46-1602-2ROTOR
        Spacer, Alt46-1601-1PULLEY
        Stator27-123-140
        Terminal Kit, Batt, Alt 49-1517
        Thru Bolt84-1371
        Tolerance Ring12-100-1FRAME, SRE
02Alternator20-143-21-1
