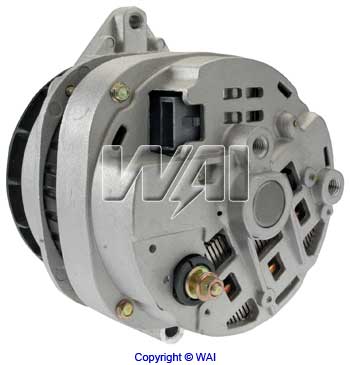

WAI 1-2170-41DR Alternator

Alternator - Delco CS144 Series
140 Amp/12 Volt, CW, 6-Groove/56mm OD Pulley, 10:30 Plug Clock

Post Buying Request Connecting Buyers Width China Suppliers

Similar Products

CAL32123GS: CASCO CAL32123GS Alternator

92500: DELCO REMY 92500 Alternator

0 986 039 340: BOSCH 0 986 039 340 Alternator

AL11205O7: FENOX AL11205O7 Alternator

0 986 UR0 751: BOSCH 0 986 UR0 751 Alternator

A030590: DA SILVA A030590 Alternator

245118702: DRI 245118702 Alternator

19011248: DELCO REMY 19011248 Alternator

0 986 UR0 270: BOSCH 0 986 UR0 270 Alternator

437798: VALEO 437798 Alternator

944390397400: MAGNETI MARELLI 944390397400 Alternator

CGB-85551: AINDE CGB-85551 Alternator

配件名称:	WAI编号:	零件所在位置:
Bearing, Needle Roller	8-122-3	FRAME, SRE
Sleeve, Packaging	89-916
Adapter, Tester	VRC101-27
Bearing, Ball	6-303-4	FRAME, DE
Brush Holder, Alt	39-1207
Brush, Alt	38-115
Brush, Alt	38-117
Case, Reg
Compound, Sleeve Retain	89-214
Frame, DE, Alt	21-141
Frame, SRE, Blank
Heat Sink, Neg
Heat Sink, Pos
Pin, Alt	39-1501
Race, Bearing	8-121-3
Retainer, Bearing, Alt	46-1509	FRAME, DE
Screw	84-1212
Slip Ring, Rotor	28-1855
Spacer, Alt	46-2602
Spring, Brush, Alt	39-1701
Terminal Block, Alt
Brush Holder Assy, Alt	39-108-3
Capacitor	46-1104
Connector, Alt	46-1310	RECTIFIER TO REGULATOR
Cover, Alt	46-1458	BRUSH
Fan, Alt	25-111
Frame, DE, Alt	21-141
Frame, SRE
Frame, SRE	22-133
Insulator, Alt	42-1106	FRAME, SRE
Insulator, Alt	42-1311
Nut	84-2700	PULLEY
Nut	85-2301	TERMINAL, BATTERY
Nut	84-2200	RECTIFIER
Pulley	24-1255-3
Rectifier	DR5179
Regulator, Alt	D445XHD
Rotor	28-133
Screw	84-1212	RECTIFIER
Screw	84-1205	CAPACITOR & RECTIFIER
Screw	84-1225	BRUSH HOLDER
Screw	84-1226	RECTIFIER
Screw	84-1226	REGULATOR
Spacer, Alt	46-1619-1	ROTOR
Spacer, Alt	46-1617-1	FAN
Spacer, Alt	46-1601-1	PULLEY
Stator	27-133
Terminal, Battery, Alt	46-1189
Thru Bolt	84-1304
Washer, Lock	84-4606	PULLEY
