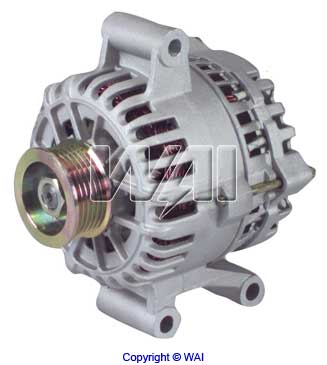

WAI 1-2350-11FD-2 Alternator

WAI 1-2350-11FD-2 Alternator

Alternator - Ford 6G Series IR/IF
110 Amp/12 Volt, CW, 6-Groove Pulley, 02:30 Plug Clock
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

20110156

PRESTOLITE ELECTRIC 20110156 Alternator

0 124 425 035

BOSCH 0 124 425 035 Alternator

119088

FARCOM 119088 Alternator

56433

EAI 56433 Alternator

943356054010

MAGNETI MARELLI 943356054010 Alternator

2111661002

DRI 2111661002 Alternator

9AL2615

VALEO 9AL2615 Alternator

L611454

BTS Turbo L611454 Alternator

554060RI

AD KüHNER 554060RI Alternator

89213530

PowerMax 89213530 Alternator

A011363

DA SILVA A011363 Alternator

L612184

BTS Turbo L612184 Alternator
     配件名称:WAI编号:零件所在位置:
                Slip Ring, Rotor28-2859
                                        Heat Sink, Neg
                                        Insulator, Alt42-2102-1RECTIFIER
                                Capacitor 46-2102
                                Diode, Pos32-1040900
                                Heat Sink, Neg31-2210
                                Heat Sink, Pos
                                Sealant, RTV Silicone
                                Terminal, Battery, Alt46-2103
                        Circuit Board, Rect31-2603
                        Diode, Neg32-1040901
                        Grease, Heat Transfer89-252
                        Heat Sink, Neg31-2210
                        Heat Sink, Pos
                        Insulator, Alt42-2313
                        Insulator, Alt31-2301RIVET, HEAT SINK
                        Nut85-2305TERMINAL, BATTERY
                        Rivet85-3202
                        Rivet84-3919
                        Rivet84-3918
                Brush, Alt38-217-1
                Collar, Stop, Alt
                Fan, Rotor 28-2415FRONT POLE PIECE
                Fan, Rotor 28-2416REAR POLE PIECE
                Fixture, TesterVRC101-28
                Harness, Repair, AltWAA600REGULATOR
                RectifierFR6003
                Shaft, Rotor
                Spring, Brush, Alt39-2702
                Stator27-216
        Bearing, Ball10-1051-4WFRAME, SRE
        Bearing, Ball6-303-4FRAME, DE
        Cover, Alt46-2452BEARING, BALL, FRAME, SRE
        Frame, DE, Alt21-230
        Frame, SRE22-215
        Insulator, Alt42-2315TERMINAL, BATTERY
        Pulley24-2254-1
        Regulator & Brush HolderF601
        Retainer, Bearing, Alt46-2503FRAME, DE
        Rotor28-212
        Screw84-1366RETAINER, BEARING
        Screw85-1217REGULATOR
        Stator & Rectifier Assy 48-209
        Thru Bolt85-1322
        Tolerance Ring46-2505FRAME, SRE
