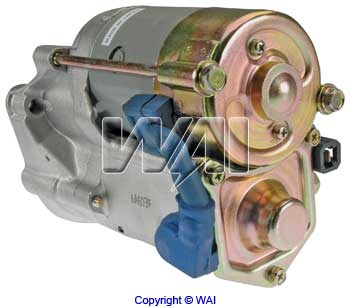

WAI 2-1044-ND Starter

WAI 2-1044-ND Starter

Starter - Nippondenso OSGR
1.0kW/12 Volt, CW, 9-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

880.538.092

CV PSH 880.538.092 Starter

254458

AD KüHNER 254458 Starter

LRS01455

LUCAS ELECTRICAL LRS01455 Starter

701013

AD KüHNER 701013 Starter

12301331

DELCO REMY 12301331 Starter

6020175.1

SANDO 6020175.1 Starter

10496885

DELCO REMY 10496885 Starter

AEX1087

AUTOELECTRO AEX1087 Starter

944280802050

MAGNETI MARELLI 944280802050 Starter

220520

MESSMER 220520 Starter

11040634

EUROTEC 11040634 Starter

AEY1719

AUTOELECTRO AEY1719 Starter
     配件名称:WAI编号:零件所在位置:
                        Pinion, Str Drive54-82201
                                Retainer, Soln66-82760
                                Rivet84-3917
                        Bearing, Ball6-104-4
                        Brush, Str68-8201
                        Bushing, Str62-82800CLUTCH
                        Collar, Stop, Str76-82807
                        Contact, Movable, Soln66-82650
                        Contact, Stationary, Sol66-82756BATTERY
                        Contact, Stationary, Sol66-82756MOTOR
                        Insulator, Str72-82400EXTERNAL
                        Insulator, Str72-82409INTERNAL
                        Nut85-2402BATTERY TERMINAL
                        Nut85-2402MOTOR TERMINAL
                        O-Ring71-82512BATTERY TERMINAL
                        O-Ring71-82512MOTOR TERMINAL
                        Repair Kit, Soln79-82101
                        Retainer, Str
                        Retaining Ring, Str76-82806PINION, STR DRIVE
                        Roller, Str
                        Sleeve, Soln
                        Spring, Clutch, Str Driv54-82601
                        Spring, Str Drive
                        Terminal Post, Soln66-82350MOTOR
                        Terminal Post, Soln66-82351BATTERY
                        Washer, Spring
                Bearing, Ball6-102-4ARMATURE, FRONT
                Bearing, Ball6-608-2ARMATURE, REAR
                Brush, Str68-8210
                Brush, Str68-8210FIELD
                Clutch, Str Drive54-82402
                Coil, Soln66-82456
                Contact & Plunger Assy66-82600
                Contact Set, Stationary BATTERY
                Contact Set, Stationary MOTOR
                Cover, Soln
                Gasket, Soln66-82401COVER
                Grommet, Str71-82306
                Insulator, Soln
                Insulator, Str FIELD COIL
                Pinion, Str Drive54-82201
                Shaft, Drive
                Spring, Brush, Str69-82701
                Spring, Str Drive
                Terminal, Soln76-82554
                Terminal 76-89550
                Terminal76-82577
        Armature, Str61-8202
        Ball, Steel, Str76-82802
        Boot, Str71-82300FIELD COIL
        Brush Holder Assy, Str69-8206-1
        Drive, Str54-8202
        Field Case Assy, Str
        Frame, CE, Str
        Gear, Str
        Housing, DE, Str
        Retainer, Str76-82804ROLLER, PINION
        Roller, Str76-82805
        Screw BRUSH HOLDER
        Screw HOUSING, DE
        Spring, Plunger, Str66-82550
        Switch, Solenoid
        Thru Bolt
        Washer, Felt, Str ARMATURE
