Home> Starter System > Starter (70832)

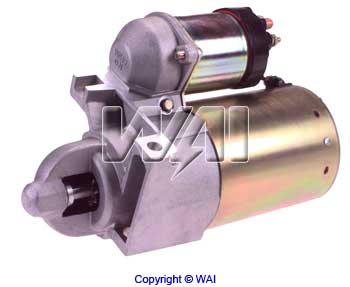

WAI 2-1516-DR Starter

WAI 2-1516-DR Starter

Starter - Delco SD250 (5MT) Series
12 Volt, CW, 9-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

8EA 726 057-001

HELLA 8EA 726 057-001 Starter

CGB-50408

AINDE CGB-50408 Starter

570.557.104

CV PSH 570.557.104 Starter

DRS3946

DELCO REMY DRS3946 Starter

11040022

EUROTEC 11040022 Starter

25-3010

ELSTOCK 25-3010 Starter

1114932

DELCO REMY 1114932 Starter

0 986 UR1 544

BOSCH 0 986 UR1 544 Starter

EF11012

EDR EF11012 Starter

CST35638GS

CASCO CST35638GS Starter

MS 225

MAHLE ORIGINAL MS 225 Starter

8212722

PowerMax 8212722 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str61-132
                                        Coil, Field Coil, St
                                Connector, Str76-1608FIELD COIL TO SOLENOID
                                Connector, Str76-1608-1FIELD COIL TO SOLENOID
                                Contact, Movable, Soln
                                Field Coil, Str
                                Lead, Field Coil76-1607BRUSH
                                Nut
                                Shaft, Armature, Str
                        Bobbin, Soln
                        Body, Str Drive
                        Brush Holder, Str69-1200
                        Brush, Str68-101
                        Bushing, Commutator
                        Bushing, Str PINION
                        Cap, Soln 66-1308
                        Commutator, Blank, Str
                        Contact Finger, Soln66-1780TERMINAL POST, RELAY
                        Contact, Movable, Soln 66-1650
                        Contact, Stationary, Sol76-1577BATTERY
                        Contact, Stationary, Sol76-1560BATTERY
                        Cover, Str Drive
                        Field Coil, Str59-104
                        Insulator, Soln66-1781CONTACT, MOVABLE
                        Lead, Ground, Str76-1600-1
                        Nut
                        Nut85-2304TERMINAL POST, RELAY
                        Nut84-2200
                        Nut84-2505CONTACT, STATIONARY, BATTERY
                        Nut84-2500CONTACT, STATIONARY, BATTERY
                        Nut85-2503CONTACT, STATIONARY, BATTERY
                        Nut84-2310TERMINAL POST, RELAY
                        Pinion, Str Drive
                        Plate, Soln
                        Plunger, Str
                        Pole Frame, Str
                        Retainer, Soln CONTACT, MOVABLE
                        Retainer, Str76-1307
                        Rivet84-3906
                        Rod, Movable Contact
                        Screw84-1356
                        Screw84-1300
                        Screw84-1221
                        Screw84-1357
                        Screw84-1100
                        Shaft, Armature, Str
                        Sleeve, Soln
                        Sleeve, Soln66-1767-1
                        Sleeve, Soln66-1750
                        Spring, Brush, Str69-1700
                        Spring, Contact, Soln
                        Stop, Soln
                        Stud, Str
                        Support, Brush Hold, Str69-1500
                        Terminal Post, Soln76-1569RELAY
                        Terminal Post, Soln76-1578RELAY
                        Terminal Post, Soln76-1578SWITCH
                        Terminal, Wire66-1758SWITCH
                        Washer, Insulating CONTACT, MOVABLE
                        Washer, Insulating84-7306TERMINAL POST, RELAY
                        Washer, Insulating84-7501CONTACT, STATIONARY, BATTERY
                        Washer, Lock84-4300
                        Washer, Lock84-4500CONTACT, STATIONARY, BATTERY
                        Washer, Lock84-4201
                        Washer, Lock84-4309TERMINAL POST, RELAY
                        Washer, Plain
                        Washer, Soln
                Bearing, Needle Roller8-118-3FRAME, CE
                Bearing, Needle Roller8-118-3HOUSING, DE
                Bobbin, Soln
                Body, Str Drive
                Brush Holder Assy, Str69-106
                Button, Shift Lever
                Cap Assy, Soln66-1218
                Coil, Armature, Str
                Commutator, Str61-1200-1
                Contact Assy, Movable66-1702
                Contact, Stationary, Soln76-1563MOTOR
                Cover, Str Drive
                End Fiber, Arm, Str
                Extension Kit, Soln79-1126
                Field Case, Str
                Field Coil & Pole Frame
                Frame, CE, Str
                Gasket, Soln66-1414-1
                Gasket, Soln66-1408
                Grommet, Str71-1312
                Housing, DE, Str51-1100-4
                Insulator, Soln66-1422
                Lamination, Arm, Str
                Link, Str
                Nut85-2304TERMINAL POST, SWITCH
                Nut84-2500CONTACT, STATIONARY, MOTOR
                Nut84-2310TERMINAL POST, SWITCH
                Pinion, Str Drive54-1211
                Plate, Stop, Soln
                Plunger, Str
                Retainer, Str Drive
                Retainer, Str
                Retaining Ring, Str
                Roller, Str
                Shaft, Armature, Str
                Shift Lever
                Spacer, Str
                Spring, Clutch, Str Drive
                Spring, Str Drive
                Terminal & Connector
                Terminal Post, Soln76-1569SWITCH
                Terminal, Wire66-1762CONTACT, STATIONARY, MOTOR
                Washer, Insulating84-7306TERMINAL POST, SWITCH
                Washer, Insulating84-7501CONTACT, STATIONARY, MOTOR
                Washer, Lock84-4309TERMINAL POST, SWITCH
                Washer, Str Drive
        Armature, Str61-132
        Collar, Stop, Str76-1800DRIVE, STR
        Collar, Thrust, Str76-1855HOUSING, DE
        Drive, Str3-307
        Field Case Assy, Str57-1205-1
        Frame, CE, Str52-118
        Housing, DE, Str51-1100-3
        Pin, Str84-5901SHIFT LEVER
        Plunger, Str66-1600
        Retaining Ring, Str84-8900SHAFT, SHIFT LEVER
        Retaining Ring, Str76-1801DRIVE, STR
        Screw84-1359FIELD COIL TO SOLENOID
        Screw84-1100BRUSH
        Screw84-1410SOLENOID
        Shaft, Shift Lever55-1201
        Shift Lever55-101
        Spring, Plunger, Str66-1551
        Switch, Solenoid66-100-1-CA
        Thru Bolt84-1342
        Washer, Brake84-7605FRAME, CE
02Starter2-1516-DR
