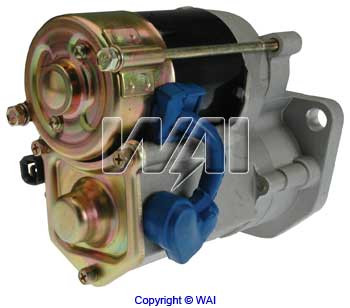

WAI 2-1040-ND-2 Starter

WAI 2-1040-ND-2 Starter

Starter - Nippondenso OSGR
1.0kW/12 Volt, CW, 9-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

ADH21270

BLUE PRINT ADH21270 Starter

IMX 0031357212R

IMEX IMX 0031357212R Starter

AES2124

AUTOELECTRO AES2124 Starter

2-2781-ND-2

WAI 2-2781-ND-2 Starter

114075

HC-Cargo 114075 Starter

105354

FARCOM 105354 Starter

6010145.0

SANDO 6010145.0 Starter

EF16413

EDR EF16413 Starter

25-0157

ELSTOCK 25-0157 Starter

913238

EDR 913238 Starter

943253174010

MAGNETI MARELLI 943253174010 Starter

1998204

DELCO REMY 1998204 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str61-8202
                                Retainer, Soln66-82760
                                Rivet84-3917
                        Bearing, Ball6-104-4
                        Brush, Str68-8201
                        Bushing, Str62-82800CLUTCH
                        Collar, Stop, Str76-82807
                        Contact, Movable, Soln66-82650
                        Contact, Stationary, Sol66-82756BATTERY
                        Contact, Stationary, Sol66-82756MOTOR
                        Insulator, Str72-82400EXTERNAL
                        Insulator, Str72-82409INTERNAL
                        Nut85-2402BATTERY TERMINAL
                        Nut85-2402MOTOR TERMINAL
                        O-Ring71-82512BATTERY TERMINAL
                        O-Ring71-82512MOTOR TERMINAL
                        Pinion, Str Drive54-82201
                        Repair Kit, Soln79-82101
                        Retainer, Str
                        Retaining Ring, Str76-82806PINION, STR DRIVE
                        Roller, Str
                        Sleeve, Soln
                        Spring, Clutch, Str Driv54-82601
                        Spring, Str Drive
                        Terminal Post, Soln66-82350MOTOR
                        Terminal Post, Soln66-82351BATTERY
                        Washer, Spring
                Bearing, Ball6-102-4ARMATURE, FRONT
                Bearing, Ball6-608-2ARMATURE, REAR
                Brush, Str68-8210
                Brush, Str68-8210FIELD
                Clutch, Str Drive54-82402
                Coil, Soln66-82454
                Contact & Plunger Assy66-82600
                Contact Set, Stationary BATTERY
                Contact Set, Stationary MOTOR
                Cover, Soln
                Gasket, Soln66-82401COVER
                Grommet, Str71-82306
                Insulator, Soln
                Insulator, Str FIELD COIL
                Pinion, Str Drive54-82201
                Shaft, Drive
                Spring, Brush, Str69-82701
                Spring, Str Drive
                Terminal, Soln76-82554
                Terminal 76-89550
                Terminal76-82577
        Ball, Steel, Str76-82802
        Boot, Str71-82301FIELD COIL
        Brush Holder Assy, Str69-8206-1
        Drive, Str54-8202
        Field Case Assy, Str
        Frame, CE, Str
        Gear, Str
        Housing, DE, Str51-8209
        Retainer, Str76-82804ROLLER, PINION
        Roller, Str76-82805
        Screw BRUSH HOLDER
        Screw HOUSING, DE
        Spring, Plunger, Str66-82550
        Switch, Solenoid
        Thru Bolt
        Washer, Felt, Str ARMATURE
