WAI 1-2657-01FD Alternator
| Rotor | 28-212 | |
| Screw | 84-1366 | RETAINER, BEARING |
| Screw | 85-1217 | REGULATOR |
| Stator | 27-216 | |
| Terminal, Battery, Alt | 46-2163 | TERMINAL, BATTERY |
| Thru Bolt | 85-1322 | |
| Tolerance Ring | 46-2505 | FRAME, SRE |
| Washer, Lock | 85-4601 | NUT, PULLEY |

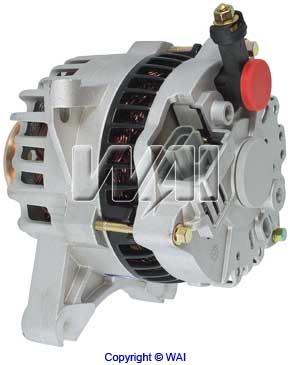

Alternator - Ford 6G Series IR/IF
110 Amp/12 Volt, CW, 6-Groove Pulley, 09:30 Plug Clock | 配件名称: | WAI编号: | 零件所在位置: |
| Bearing, Ball | 6-303-4 | FRAME, DE |
| Heat Sink, Neg | | |
| Insulator, Alt | 42-2102-1 | RECTIFIER |
| Capacitor | 46-2102 | |
| Diode, Pos | 32-1040900 | |
| Heat Sink, Neg | 31-2210 | |
| Heat Sink, Pos | | |
| Sealant, RTV Silicone | | |
| Terminal, Battery, Alt | 46-2103 | |
| Brush, Alt | 38-217-1 | |
| Circuit Board, Rect | 31-2603 | |
| Collar, Stop, Alt | | |
| Diode, Neg | 32-1040901 | |
| Fan, Rotor | 28-2415 | FRONT POLE PIECE |
| Fan, Rotor | 28-2416 | REAR POLE PIECE |
| Fixture, Tester | VRC101-28 | |
| Grease, Heat Transfer | 89-252 | |
| Harness, Repair, Alt | WAA600 | REGULATOR |
| Heat Sink, Neg | 31-2210 | |
| Heat Sink, Pos | | |
| Insulator, Alt | 42-2313 | |
| Insulator, Alt | 31-2301 | RIVET, HEAT SINK |
| Nut | 85-2305 | TERMINAL, BATTERY |
| Rivet | 85-3202 | |
| Rivet | 84-3919 | |
| Rivet | 84-3918 | |
| Shaft, Rotor | | |
| Slip Ring, Rotor | 28-2859 | |
| Spring, Brush, Alt | 39-2702 | |
| Test Lead, Alt | | |
| Bearing, Ball | 10-1051-4W | FRAME, SRE |
| Cap, Alt | 46-2852 | TERMINAL, BATTERY |
| Cover, Alt | 46-2452 | BEARING, BALL, FRAME, SRE |
| Frame, DE, Alt | 21-235 | |
| Frame, SRE | 22-215 | |
| Nut | 85-2301 | TERMINAL, BATTERY |
| Nut | 85-2600 | PULLEY |
| Pulley | 24-2254-1 | |
| Rectifier | FR6003 | |
| Regulator & Brush Holder | F600 | |
| Retainer, Bearing, Alt | 46-2503 | FRAME, DE |
