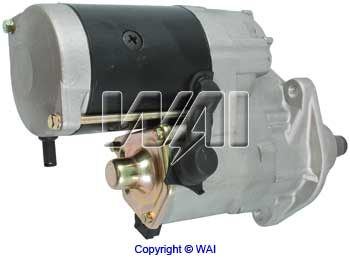

WAI 2-1751-ND-2 Starter

WAI 2-1751-ND-2 Starter

Starter - Nippondenso OSGR
5.5kW/24 Volt, CW, 10-Tooth Pinion

Post Buying Request Connecting Buyers Width China Suppliers

Similar Products

88212104

PowerMax 88212104 Starter

671007114

DRI 671007114 Starter

6035175.1

SANDO 6035175.1 Starter

18473N

WAIglobal 18473N Starter

J5215045

HERTH+BUSS JAKOPARTS J5215045 Starter

4054

SPIDAN 4054 Starter

433279

VALEO 433279 Starter

DRS0624

DELCO REMY DRS0624 Starter

339012152

DRI 339012152 Starter

CPA1115047

CAMPRO CPA1115047 Starter

BST2482

BORG & BECK BST2482 Starter

910189

EDR 910189 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str61-8208
                                Retainer, Soln66-82765
                                Rivet84-3921
                        Bearing, Ball6-105-4
                        Collar, Stop, Str76-82813
                        Contact, Movable, Soln66-82652
                        Contact, Stationary, Sol66-82766BATTERY
                        Contact, Stationary, Sol66-82767MOTOR
                        Grommet, Str71-82314
                        Insulator, Str72-82412INTERNAL
                        Insulator, Str72-82413EXTERNAL
                        Insulator, Str72-82410EXTERNAL
                        Nut85-2505MOTOR TERMINAL
                        Nut85-2504BATTERY TERMINAL
                        O-Ring71-82516BATTERY TERMINAL
                        Repair Kit, Soln79-82102
                        Retainer, Str Drive
                        Retaining Ring, Str
                        Retaining Ring, Str76-82811
                        Roller, Str
                        Spring, Clutch, Str Driv54-82605
                        Spring, Clutch, Str Driv54-82607
                        Spring, Str Drive54-82606
                        Terminal Post, Soln66-82354MOTOR
                        Terminal Post, Soln66-82353BATTERY
                        Washer, Spring85-4503
                Bearing, Ball6-202-4ARMATURE, FRONT
                Bearing, Ball6-200-4ARMATURE, REAR
                Bracket, Soln
                Clutch, Str Drive54-82400
                Coil, Soln66-82455
                Contact & Plunger Assy66-82605
                Contact Set, Stationary BATTERY
                Contact Set, Stationary MOTOR
                Field Coil, Str59-8207
                Gasket, Soln66-82402COVER
                Insulator, Soln
                Pinion, Str Drive54-82209
                Shaft, Drive
                Spring, Brush, Str
                Spring, Str Drive54-82600
                Terminal, Soln SWITCH
                Terminal, Soln76-82555SWITCH
        Ball, Steel, Str76-82802
        Boot, Str71-82303FIELD COIL
        Brush Holder Assy, Str69-8208
        Brush, Str68-8216GROUND
        Brush, Str68-8217FIELD
        Drive, Str
        Field Case Assy, Str
        Frame, CE, Str
        Housing, DE, Str
        O-Ring71-82513FIELD CASE
        Retainer, Str ROLLER, PINION
        Spring, Plunger, Str66-82551
        Switch, Solenoid
        Tube, Drain, Str71-82302FRAME, CE
        Washer, Thrust
