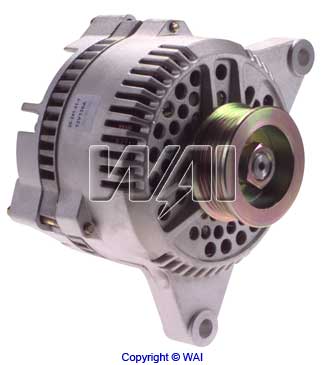

WAI 20-241-31-2 Alternator
Alternator - Ford 3G Series IR/IF
130 Amp/12 Volt, CW, 6-Groove Pulley, 10:00 Plug Clock | 配件名称: | WAI编号: | 零件所在位置: |
| Alternator | 20-241-30-2 | |
| Heat Sink, Neg | | |
| Insulator, Alt | 42-2102-1 | RECTIFIER |
| Bobbin, Rotor | 28-2304 | |
| Capacitor | 46-2102 | |
| Diode, Neg | 32-1040901 | |
| Diode, Pos | 32-1040900 | |
| Heat Sink, Neg | 31-2203 | |
| Heat Sink, Pos | 31-2202 | |
| Lamination, Stator | | |
| Magnet Wire | | |
| Nut | | |
| Rivet | 84-3916 | |
| Rivet | 84-3918 | |
| Sealant, RTV Silicon | | |
| Tape, Glass Cloth | | |
| Terminal, Battery, A | 46-2156 | |
| Terminal, Wire | | |
| Terminal | | |
| Washer, Lock | 85-4307 | |
| Circuit Board, Rect | 31-2601 | |
| Coil, Rotor | | |
| Dampener, Rotor | 28-2410 | |
| Fixture, Tester | DT350-26 | |
| Grease, Heat Transfer | 89-252 | |
| Harness, Repair, Alt | 46-2804 | STATOR TERMINAL |
| Heat Sink, Neg | | |
| Heat Sink, Pos | | |
| Insulator, Alt | 42-2311 | |
| Insulator, Alt | 31-2301 | RIVET, HEAT SINK |
| Lamination Assy, Stato | | |
| Magnet Wire | | |
| Nut | 85-2305 | TERMINAL, BATTERY |
| Plug, Repair, Alt | 46-2807 | |
| Pole Piece, Rotor | | |
| Retaining Ring, Alt | 28-2400 | |
| Shading Ring, Rotor | | |
| Shaft, Rotor | | |
| Slot Insulator, Stator | | |
| Fan, Rotor | | REAR POLE PIECE |
| Fan, Rotor | 28-2405 | FRONT POLE PIECE |
| Rectifier | FR2023 | |
| Rotor | | |
| Sleeve, Insulating | | |
| Stator | 27-212-1 | |
| Bearing, Ball | 6-100-84 | FRAME, SRE |
| Bearing, Ball | 6-303-4 | FRAME, DE |
| Brush Holder, Alt | 39-2206 | |
| Brush, Alt | 38-216 | |
| Collar, Stop, Alt | 46-2605 | |
| Frame, DE, Alt | 21-222 | |
| Frame, SRE | 22-210 | |
| Harness, Repair, Alt | 46-2808 | REGULATOR |
| Insulator, Alt | 42-2308 | |
| Nut | 85-2600 | PULLEY |
| Plug, Expansion, Alt | 46-2850 | FRAME, SRE |
| Retainer, Bearing, Alt | 46-2503 | FRAME, DE |
| Rotor | 28-209 | |
| Screw | 84-1366 | RETAINER, BEARING |
| Spacer, Alt | | PACKAGING WO/PULLEY |
| Spring, Brush, Alt | 39-2700-1 | |
| Stator & Rectifier Assy | | |
| Terminal, Wire | 46-2301 | |
| Test Lead, Alt | | |
| Thru Bolt | 85-1322 | |
| Brush Holder Assy, Alt | 39-207 | |
| Cover, Alt | 42-2309 | REGULATOR |
| Pulley | 24-2257 | |
| Regulator, Alt | F786 | |
| Screw | 85-1202 | BRUSH HOLDER |
| Screw | 85-1206 | REGULATOR |
