| Nut | 85-2401 | SOLENOID |
| Magnet, Str | 58-2500 | NORTH POLE |
| Magnet, Str | 58-2501 | SOUTH POLE |
| Insulator, Str | 72-2115 | |
| Housing, DE, Str | | |
| Gear, Stationary | | |
| Gear, Planetary | | |
| Gasket, Soln | 66-2401 | |
| Gasket, Soln | 66-2402 | |
| Frame, CE, Str | | |
| Field Case, Str | | |
| Contact & Plunger Assy | | |
| Commutator, Str | 61-2201 | |
| Coil, Soln | 66-2450 | |
| Coil, Armature, Str | | |
| Case, Soln | | |
| Cap Assy, Soln | 66-2201 | |
| Bushing, Str | 62-2403 | HOUSING, DE |
| Bushing, Str | 62-2402 | HOUSING, DE |
| Bushing, Str | 62-2402 | FRAME, CE |
| Bushing, Str | 62-2700 | GEAR, STATIONARY |
| Bushing, Str | 62-2200 | GEAR, PLANETARY |
| Bushing, Str | 62-2300 | SHAFT, PLANETARY |
| Brush, Str | 68-217 | FIELD |
| Brush, Str | 68-219 | GROUND |
| Brush Holder, Str | 69-2206-1 | |
| Bracket, Str | 76-2304 | |
| Band, Armature, Str | | GEAR END |
| Band, Armature, Str | | COMMUTATOR END |
| Wire, Armature | | |
| Washer, Sealing | | CONTACT, STATIONARY, MOTOR |
| Washer, Sealing | | CONTACT, STATIONARY, BATTERY |
| Washer, Plain | 84-4102 | |
| Washer, Crimp | 85-9401 | CONTACT, STATIONARY, MOTOR |
| Washer, Crimp | 85-9401 | CONTACT, STATIONARY, BATTERY |
| Washer, Crimp | | |
| Terminal, Soln | | |
| Terminal & Lead, Str | | |
| Spring, Contact, Soln | 66-2550 | CONTACT RETURN |
| Spring, Contact, Soln | | CONTACT CUSHION |
| Sleeve, Soln | | |
| Shunt, Str | 57-2500 | |
| Shaft, Armature, Str | | |
| Plunger, Str | 66-2601 | |
| Plate, Stop, Soln | | |
| Magnet, Str | | |
| Magnet Wire | | |
| Lamination, Arm, Str | | |
| Insulator, Soln | 66-2757 | CONTACT, TOP LOCATION |
| Insulator, Soln | | CONTACT, BOTTOM LOCATION |
| Grommet, Str | 71-2308 | |
| Field Case, Str | | |
| End Fiber, Arm, Str | | |
| Diode | | |
| Contact, Stationary, Sol | 76-2562 | |
| Contact, Movable, Soln | 66-2755 | |
| Connector, Soln | | |
| Commutator, Str | | |
| Cap, Soln | | |
| Brush, Str | 68-218 | FIELD |
| Bracket, Str | 76-2305 | |
| Bobbin, Soln | | |

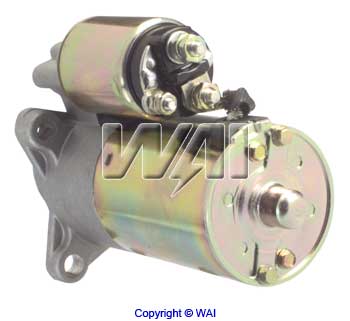

Starter - Ford PMGR
12 Volt, CW, 9-Tooth Pinion | 配件名称: | WAI编号: | 零件所在位置: |
| Armature, Str | 61-210-1 | |
| 03Starter | 2-1918-FD-1 | |
| 02Starter | 2-1918-FD-1 | |
| Washer, Thrust | 84-4712 | DRIVE, STR |
| Thru Bolt | 85-1317 | |
| Switch, Solenoid | 66-205 | |
| Support, Shift Lever | 71-2309 | HOUSING, DE |
| Shift Lever | 55-209 | |
| Shaft, Planetary | 76-2809 | |
| Screw Kit, Str | | |
| Retaining Ring, Str | 76-2800 | DRIVE, STR |
| Retainer, Str | 76-2819 | SHAFT, PLANETARY |
| Housing, DE, Str | 51-240 | |
| Gear, Stationary | 76-2811 | |
| Gear, Planetary | 76-2810 | |
| Frame, CE, Str | 52-212 | |
| Field Case Assy, Str | 57-2209 | |
| Drive, Str | 54-214 | |
| Cover, Str | 76-2302 | GEAR, PLANETARY |
| Cover, Str | | TERMINALS, SOLN |
| Collar, Stop, Str | 76-2801 | DRIVE, STR |
| Brush Holder Assy, Str | 69-201-2 | |
| Ball, Steel, Str | 76-2812 | SHAFT, PLANETARY |
| Armature, Str | 61-210-1 | |
| Tool, Solenoid | | |
| Tool, Magnetic Test | | |
| Terminal & Lead, Str | | |
| Support, Shift Lever | | |
| Spring, Brush, Str | 69-2704 | |
| Slot Insulator, Arm, Str | | |
| Shaft, Planetary | | |
| Shaft & Core, Arm, Str | | |
| Screw | 85-1319 | SOLENOID |
| Screw | 85-1320-1 | BRUSH HOLDER |
| Retainer, Str | 76-2814 | |
| Pin, Gear, Planetary | | |
| Pad, Shift Lever | | |
