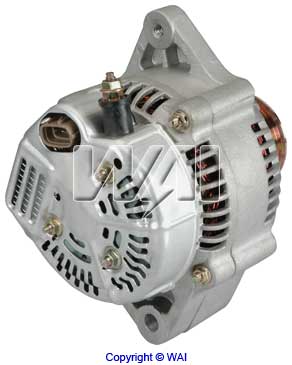

WAI 1-2148-02ND Alternator
Alternator - Nippondenso IR/IF
70 Amp/12 Volt, CW, 5-Groove Pulley | 配件名称: | WAI编号: | 零件所在位置: |
| Brush Holder Assy, Alt | 39-8200-1 | |
| Bearing, Ball | 10-2021-4W | FRAME, SRE |
| Bearing, Ball | 10-3022-4W | FRAME, DE |
| Brush, Alt | 38-8201 | |
| Cover, Alt | 46-82700 | BEARING, SRE |
| Diode, Neg | 32-8917 | |
| Diode, Pos | 32-8918 | |
| Frame, DE, Alt | | |
| Gasket, Alt | 41-82100 | |
| Retainer, Bearing, Alt | | |
| Retainer, Bearing, Alt | 46-82502 | |
| Screw | | RETAINER, BEARING |
| Screw | 85-1209 | RETAINER, BEARING |
| Seal, Alt | 41-82300 | |
| Seal, Alt | 41-82300 | BRUSH HOLDER |
| Spacer, Alt | | FRAME, DE |
| Spring, Brush, Alt | 39-82700 | |
| Stator | | |
| Stud, Alt | 46-82150 | RETAINER, BEARING, BALL |
| Thru Bolt | 85-1403 | |
| Washer, Spring | 46-82802 | |
| Cover, Alt | 46-82464 | |
| Frame, DE & Stator Assy | | |
| Frame, SRE | 22-8204 | |
| Grommet, Alt | 41-82301 | STATOR |
| Insulator, Alt | 42-82300 | RECTIFIER |
| Nut | 85-2300 | |
| Nut | 85-2601 | PULLEY |
| Nut | 85-2309 | RECTIFIER |
| Pulley | 24-82265 | |
| Rectifier | INR720-1 | |
| Regulator, Alt | IN452 | |
| Rotor | | |
| Screw | 85-1205 | |
| Screw | 85-1210 | |
