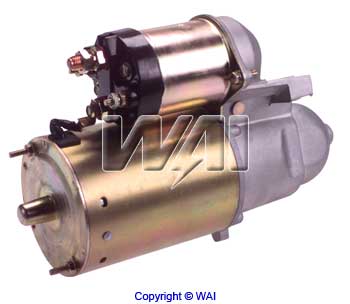

WAI 2-1514-DR Starter

WAI 2-1514-DR Starter

Starter - Delco SD200 (5MT) Series
12 Volt, CW, 9-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

1114142

DELCO REMY 1114142 Starter

S511004

BTS Turbo S511004 Starter

9 000 082 009

BOSCH 9 000 082 009 Starter

335237092

DRI 335237092 Starter

D02021

DA SILVA D02021 Starter

S513048

BTS Turbo S513048 Starter

J5210539

HERTH+BUSS JAKOPARTS J5210539 Starter

RS34224

DELCO REMY RS34224 Starter

SS846

WAIglobal SS846 Starter

25-2022

ELSTOCK 25-2022 Starter

943214111010

MAGNETI MARELLI 943214111010 Starter

LRT00202

LUCAS ELECTRICAL LRT00202 Starter
     配件名称:WAI编号:零件所在位置:
                        Terminal Post, Soln76-1569RELAY
                                        Coil, Field Coil, St
                                Connector, Str76-1608FIELD COIL TO SOLENOID
                                Connector, Str76-1608-1FIELD COIL TO SOLENOID
                                Contact, Movable, Soln
                                Field Coil, Str
                                Lead, Field Coil76-1607BRUSH
                                Nut
                        Bobbin, Soln
                        Brush Holder, Str69-1200
                        Brush, Str68-101
                        Bushing, Commutator
                        Cap, Soln 66-1308
                        Commutator, Blank, Str
                        Contact Finger, Soln66-1780TERMINAL POST, RELAY
                        Contact, Movable, Soln 66-1650
                        Contact, Stationary, Sol76-1577BATTERY
                        Contact, Stationary, Sol76-1560BATTERY
                        Field Coil, Str59-104
                        Field Coil, Str59-103
                        Housing, DE, Blank, Str
                        Insulator, Soln66-1781CONTACT, MOVABLE
                        Lead, Ground, Str76-1600-1
                        Nut
                        Nut85-2304TERMINAL POST, RELAY
                        Nut84-2200
                        Nut84-2505CONTACT, STATIONARY, BATTERY
                        Nut84-2500CONTACT, STATIONARY, BATTERY
                        Nut85-2503CONTACT, STATIONARY, BATTERY
                        Nut84-2310TERMINAL POST, RELAY
                        Plate, Soln
                        Plunger, Str
                        Pole Frame, Str
                        Retainer, Soln CONTACT, MOVABLE
                        Retainer, Str76-1303
                        Rivet84-3906
                        Rod, Movable Contact
                        Screw84-1356
                        Screw84-1300
                        Screw84-1221
                        Screw84-1357
                        Screw84-1100
                        Sleeve, Soln
                        Sleeve, Soln66-1767-1
                        Sleeve, Soln66-1750
                        Spring, Brush, Str69-1700
                        Spring, Contact, Soln
                        Stop, Soln
                        Stud, Str
                        Support, Brush Hold, Str69-1500
                        Terminal Post, Soln76-1569RELAY
                        Terminal Post, Soln76-1578RELAY
                        Terminal Post, Soln76-1578SWITCH
                        Terminal, Wire66-1758SWITCH
                        Washer, Insulating CONTACT, MOVABLE
                        Washer, Insulating84-7306TERMINAL POST, RELAY
                        Washer, Insulating84-7501CONTACT, STATIONARY, BATTERY
                        Washer, Lock84-4300
                        Washer, Lock84-4500CONTACT, STATIONARY, BATTERY
                        Washer, Lock84-4201
                        Washer, Lock84-4309TERMINAL POST, RELAY
                        Washer, Plain
                        Washer, Soln
                Bobbin, Soln
                Brush Holder Assy, Str69-106
                Bushing, Str62-1402FRAME, CE
                Bushing, Str62-1402HOUSING, DE
                Button, Shift Lever
                Cap Assy, Soln66-1218
                Commutator, Str61-1200-1
                Contact Assy, Movable66-1702
                Contact, Stationary, Soln76-1563MOTOR
                Extension Kit, Soln79-1126
                Field Case, Str
                Field Coil & Pole Frame
                Frame, CE, Str
                Gasket, Soln66-1414-1
                Gasket, Soln66-1408
                Grommet, Str71-1312
                Housing, DE, Str51-188-4
                Insulator, Soln66-1422
                Link, Str
                Nut85-2304TERMINAL POST, SWITCH
                Nut84-2500CONTACT, STATIONARY, MOTOR
                Nut84-2310TERMINAL POST, SWITCH
                Plate, Stop, Soln
                Plunger, Str
                Retainer, Str
                Shaft, Armature, Str SS-1988-HT
                Shift Lever
                Spacer, Str61-1701
                Terminal & Connector
                Terminal Post, Soln76-1569SWITCH
                Terminal, Wire66-1762CONTACT, STATIONARY, MOTOR
                Washer, Insulating84-7306TERMINAL POST, SWITCH
                Washer, Insulating84-7501CONTACT, STATIONARY, MOTOR
                Washer, Lock84-4309TERMINAL POST, SWITCH
        Armature, Str61-132
        Brush Holder Kit, Str
        Collar, Stop, Str76-1800DRIVE, STR
        Collar, Thrust, Str76-1802HOUSING, DE
        Drive, Str3-305
        Field Case Assy, Str57-1201
        Field Case Assy, Str57-1205-1
        Frame, CE, Str52-100
        Housing, DE, Str51-188-3
        Pin, Str84-5901SHIFT LEVER
        Plunger, Str66-1600
        Retaining Ring, Str84-8900SHAFT, SHIFT LEVER
        Retaining Ring, Str76-1801DRIVE, STR
        Screw84-1359FIELD COIL TO SOLENOID
        Screw84-1100BRUSH
        Screw84-1410SOLENOID
        Shaft, Shift Lever55-1201
        Shift Lever55-101
        Spring, Plunger, Str66-1551
        Switch, Solenoid66-100-1-CA
        Thru Bolt
        Thru Bolt84-1343
        Thru Bolt84-1342
        Washer, Brake84-7605FRAME, CE
        Washer, Lock84-4401SCREW, SOLENOID
02Starter2-1514-DR
