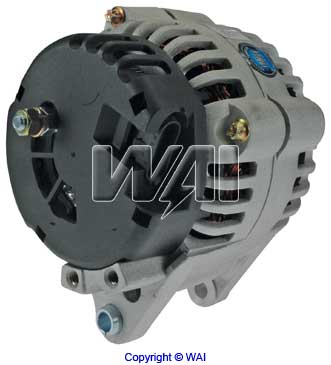

WAI 1-2068-01DR-1 Alternator
Alternator - Delco CS130D Series
105 Amp/12 Volt, CW, 6-Groove Pulley, 03:00 Plug Clock | 配件名称: | WAI编号: | 零件所在位置: |
| Screw | 85-1214 | REGULATOR |
| Clip, Alt | | |
| Heat Sink, Neg | | |
| Heat Sink, Pos | | |
| Insulator, Rect | | |
| Pin, Alt | | |
| Diode | | |
| Fixture, Tester | DT350-9 | |
| Heat Sink | | |
| Pad, Rect | | |
| Terminal, Rect | | |
| Brush, Alt | | |
| Capacitor | | |
| Coil, Rotor | | |
| Core, Rotor | | |
| Cover, Alt | | |
| Fan, Rotor | 28-1413 | |
| Frame, DE, Blank, Alt | | |
| Grease, Heat Transfer | 89-252 | |
| Insulator, Alt | 28-1432 | |
| Pole Piece, Rotor | | |
| Rectifier | | |
| Screw | 84-1102 | |
| Shaft, Rotor | | |
| Slip Ring, Rotor | 28-1856 | |
| Spring, Brush, Alt | | |
| Terminal | | |
| Tool, Pressure Screw | 88-731 | |
| Tool, Stator Puller | 88-730 | |
| Washer, Plain | 85-4308 | |
| Adapter, Tester | VRC101-27 | |
| Bearing, Ball | 6-202-4 | FRAME, SRE |
| Bearing, Ball | 6-303-4 | FRAME, DE |
| Brush Holder, Alt | 39-1209-3 | |
| Brush, Alt | 38-119 | NEGATIVE |
| Brush, Alt | 38-120 | POSITIVE |
| Bushing, Mounting, Alt | 46-1566 | SRE FRAME |
| Cap, Alt | 39-1505 | |
| Coil & Core, Rotor | | |
| Compound, Sleeve Retain | 89-214 | |
| Fan, Rotor | | REAR POLE PIECE |
| Fan, Rotor | 28-1427 | FRONT POLE PIECE |
| Fixture, Tester | DT350-9 | |
| Fixture, Tester | VRC101-24 | |
| Frame, DE, Alt | 21-153 | |
| Frame, SRE, Blank | | |
| Insulator, Alt | 42-1316 | |
| Insulator, Alt | 28-1432 | |
| Pole Piece, Rotor | | |
| Rectifier | DR4200 | |
| Repair Kit, Alt | 49-1120 | |
| Retainer, Bearing, Alt | 46-1510 | |
| Screw | 85-1200 | |
| Shaft, Rotor | | |
| Sleeve, Packaging | | |
| Slip Ring, Rotor | 28-1856 | |
| Spacer, Alt | 89-914 | |
| Stator | 27-137 | |
| Terminal, Battery, Alt | 46-1185 | |
| Tool, Brush Holder, Alt | 88-733 | |
| Brush Holder Assy, Alt | 39-109-2 | |
| Cover, Alt | 46-1403 | FRAME, SRE |
| Frame, DE & Stator Assy | | |
| Frame, SRE | 22-139 | |
| Insulator, Alt | 42-1314-1 | FRAME, SRE |
| Nut | 84-2700 | PULLEY |
| Pulley | 24-1273 | |
| Rectifier | DR4200 | |
| Regulator, Alt | D705XHD | |
| Rotor | 28-154 | |
| Screw | 85-1200 | RECTIFIER |
| Screw | 85-1200 | REGULATOR |
| Spacer, Alt | 46-1621 | ROTOR |
| Thru Bolt | 85-1335 | |
| Washer, Lock | 84-4606 | NUT, PULLEY |
