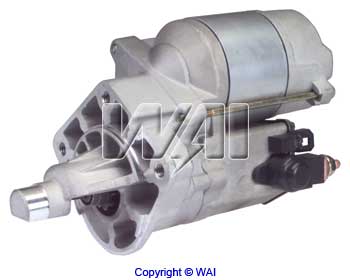

WAI 2-1943-ND-2 Starter

WAI 2-1943-ND-2 Starter

Starter - Nippondenso OSGR
1.4kW/12 Volt, CW, 10-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

ADN11230

BLUE PRINT ADN11230 Starter

LRS02445

LUCAS ELECTRICAL LRS02445 Starter

590.544.112

CV PSH 590.544.112 Starter

BST2435

BORG & BECK BST2435 Starter

SX 2100

STARLINE SX 2100 Starter

440709

ALANKO 440709 Starter

6060137.0

SANDO 6060137.0 Starter

3522

CEVAM 3522 Starter

BST2589

BORG & BECK BST2589 Starter

55-0099

MAXGEAR 55-0099 Starter

S0172

AS-PL S0172 Starter

311136092

DRI 311136092 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str61-8211
                                Bracket, Soln
                                Nut 84-2203
                                Retainer, Soln66-82765
                                Rivet84-3921
                                Screw 84-1238
                                Sleeve, Soln
                        Bearing, Ball CLUTCH, FRONT
                        Bearing, Ball6-104-4CLUTCH, FRONT
                        Bearing, Ball6-904-4W
                        Bracket Kit, Soln76-82251
                        Brush, Str68-8201
                        Bushing, Str62-82801CLUTCH
                        Coil, Soln66-82459
                        Collar, Stop, Str76-82807
                        Contact, Movable, Soln66-82651
                        Contact, Stationary, Sol66-82761BATTERY
                        Contact, Stationary, Sol66-82756MOTOR
                        Harness, Wire, Str
                        Insulator, Str72-82400EXTERNAL
                        Insulator, Str72-82409INTERNAL
                        Nut85-2402BATTERY TERMINAL
                        Nut85-2402MOTOR TERMINAL
                        O-Ring71-82512BATTERY TERMINAL
                        O-Ring71-82512MOTOR TERMINAL
                        Plate, Stop, Soln 66-82774
                        Repair Kit, Soln79-82102
                        Retainer, Str
                        Retaining Ring, Str76-82806
                        Roller, Str54-82503
                        Spring, Clutch, Str Driv54-82602
                        Spring, Str Drive
                        Terminal Post, Soln66-82350MOTOR
                        Terminal Post, Soln66-82351BATTERY
                        Washer, Spring
                Bearing, Ball6-102-4ARMATURE, FRONT
                Bearing, Ball6-608-2ARMATURE, REAR
                Bracket, Soln
                Brush, Str68-8210
                Brush, Str68-8219FIELD
                Clutch, Str Drive54-82401
                Coil, Soln
                Contact & Plunger Assy66-82603-1
                Contact Set, Stationary BATTERY
                Contact Set, Stationary MOTOR
                Cover, Soln
                Gasket, Soln66-82404COVER
                Grommet, Str
                Insulator, Soln
                Pinion, Str Drive54-82215
                Shaft, Drive
                Spring, Brush, Str69-82701
                Spring, Str Drive
                Terminal, Soln76-82565SWITCH
                Terminal, Str
        Ball, Steel, Str76-82802SHAFT, DRIVE
        Boot, Str71-82301TERMINAL, MOTOR
        Brush Holder Assy, Str69-8201
        Cover, Str72-82103TERMINAL, BATTERY
        Drive, Str54-8226
        Field Case Assy, Str
        Housing, DE, Str
        Insulator, Str FIELD COIL
        Insulator, Str72-82104SOLENOID
        O-Ring71-82510FIELD CASE
        Spring, Plunger, Str66-82550
        Switch, Solenoid
        Terminal Post, Soln76-82566BATTERY
        Tube, Drain, Str FRAME, CE
