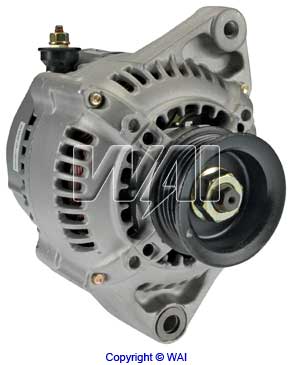

WAI 1-1166-01ND Alternator
Alternator - Nippondenso IR/IF
70 Amp/12 Volt, CW, 5-Groove Pulley | 配件名称: | WAI编号: | 零件所在位置: |
| Brush Holder Assy, Alt | 39-8200-1 | |
| Repair Ring, Slip Ring | 28-82850 | |
| Sleeve, Packaging | 89-916 | |
| Bearing, Ball | 10-3041-4W | FRAME, DE |
| Bearing, Ball | 10-2021-4W | FRAME, SRE |
| Bobbin, Rotor | | |
| Brush, Alt | 38-8201 | |
| Cover, Alt | 46-82700 | BEARING, SRE |
| Diode, Neg | 32-8917 | |
| Diode, Pos | 32-8918 | |
| Frame, DE, Alt | | |
| Gasket, Alt | 41-82100 | |
| Harness, Repair, Alt | 46-82807 | REGULATOR |
| Plug, Adapter, Alt | | |
| Repair Circuit, Regulator | TRI220-B2 | |
| Retainer, Bearing, Alt | | |
| Screw | | |
| Screw | 85-1209 | RETAINER, BEARING |
| Seal, Alt | 41-82300 | |
| Seal, Alt | 41-82300 | BRUSH HOLDER |
| Slip Ring, Rotor | 28-82853 | |
| Spacer, Alt | | FRAME, DE |
| Spring, Brush, Alt | 39-82700 | |
| Stator | | |
| Stator | 27-8201 | |
| Stud, Alt | 46-82150 | RETAINER, BEARING, BALL |
| Thru Bolt | 85-1403 | |
| Washer, Spring | 46-82802 | |
| Cover, Alt | 46-82451 | FRAME, SRE |
| Frame, DE & Stator Assy | | |
| Frame, SRE | 22-8204 | |
| Grommet, Alt | 41-82301 | STATOR |
| Insulator, Alt | 42-82315 | TERMINAL, BATTERY |
| Nut | 85-2300 | COVER, SRE |
| Nut | 85-2300 | THRU BOLT |
| Nut | 85-2601 | PULLEY |
| Nut | 85-2309 | TERMINAL, BATTERY |
| Pulley | | |
| Rectifier | INR720-1 | |
| Regulator, Alt | IN320 | |
| Rotor | | |
| Screw | 85-1205 | BRUSH HOLDER |
| Screw | 85-1205 | LEAD, STATOR |
| Screw | 85-1210 | REGULATOR |
