Home> Starter System > Starter (70832)

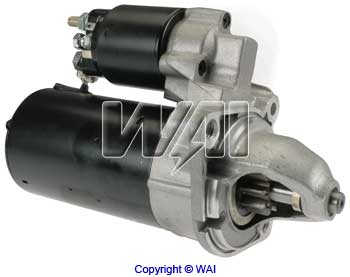

WAI 2-1997-BO Starter

WAI 2-1997-BO Starter

Starter - Bosch PMGR
1.4kW/12 Volt, CW, 9-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

188598

VALEO 188598 Starter

S5044

AS-PL S5044 Starter

EF14513

EDR EF14513 Starter

1114725

DELCO REMY 1114725 Starter

0 001 510 017

BOSCH 0 001 510 017 Starter

12.130.332

AES 12.130.332 Starter

LRS01071

LUCAS ELECTRICAL LRS01071 Starter

EF10232

EDR EF10232 Starter

25-4147

ELSTOCK 25-4147 Starter

107310

FARCOM 107310 Starter

104689

FARCOM 104689 Starter

25-0390

ELSTOCK 25-0390 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str
                        Bearing, Needle Roller8-203-3GEAR, PLANETARY
                        Bushing, Str62-91305SHAFT, PLANETARY
                        Gear, Planetary
                Bearing, Needle Roller8-201-3HOUSING, DE
                Boot, Str71-91309
                Brush Holder, Str BRUSH HOLDER ASSEMBLY
                Brush, Str68-9130GROUND
                Brush, Str68-9140FIELD
                Brush, Str68-9129GROUND
                Bushing, Str62-91300FRAME, CE
                Bushing, Str62-91411DRIVE, STR
                Collar, Stop, Str76-91817SHAFT ASSY, PLANETARY
                Collar, Stop, Str76-91819SHAFT ASSY, PLANETARY
                Cover, Str76-91828
                Gasket, Str71-91103
                Gear, Planetary76-2816
                Gear, Stationary
                Grommet, Str FIELD CASE
                Magnet, Str NORTH POLE
                Magnet, Str SOUTH POLE
                Plug, Str
                Retainer, Str GEAR, STATIONARY
                Retainer, Str MAGNET
                Retainer, Str76-91822GEAR, STATIONARY
                Retaining Ring, Str ARMATURE, REAR
                Retaining Ring, Str76-91825
                Retaining Ring, Str76-91818SHAFT ASSY, PLANETARY
                Retaining Ring, Str76-91820SHAFT ASSY, PLANETARY
                Shaft, Planetary
                Shift Flange, Str Drive
                Shunt, Str
                Spring, Brush, Str69-91706
                Washer, Felt, Str85-7501
                Washer, Plain
                Washer, Plain 85-4504
        Brush Holder Assy, Str69-9123
        Cover, Str FRAME, CE
        Drive, Str54-91101
        Field Case Assy, Str
        Frame, CE, Str
        Gasket, Str71-91103COVER, CE
        Housing, DE, Str
        Nut85-2400TERMINAL, MOTOR, SOLENOID
        Plug, Str HOUSING, DE
        Screw COVER, CE
        Screw85-1334SOLENOID
        Shaft Assy, Planetary
        Shift Lever55-9103
        Small Parts Kit, Str
        Support, Shift Lever
        Switch, Solenoid
        Thru Bolt85-1357
        Washer, Lock84-4402TERMINAL, MOTOR, SOLENOID
