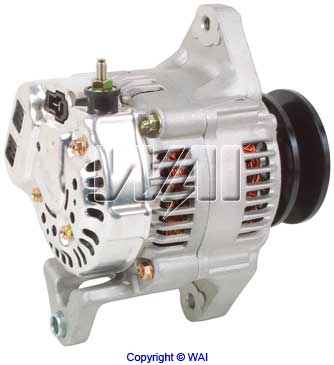

WAI 1-2822-01ND-2 Alternator
Alternator - Nippondenso IR/IF
20 Amp/24 Volt, 1-Groove Pulley | 配件名称: | WAI编号: | 零件所在位置: |
| Brush Holder Assy, Alt | 39-8200-1 | |
| Bearing, Ball | 6-3102-4W | FRAME, SRE |
| Bearing, Ball | 6-202-4 | FRAME, DE |
| Brush, Alt | 38-8201 | |
| Bushing, Mounting, Alt | | FRAME, SRE |
| Cover, Alt | 46-82700 | BEARING, SRE |
| Frame, DE, Alt | | |
| Retainer, Bearing, Alt | | |
| Screw | | |
| Seal, Alt | 41-82300 | |
| Spring, Brush, Alt | 39-82700 | |
| Stator | | |
| Thru Bolt | | |
| Cover, Alt | | FRAME, SRE |
| Frame, DE & Stator Assy | | |
| Frame, SRE | | |
| Insulator, Alt | | RECTIFIER |
| Nut | 85-2300 | FRAME, SRE |
| Nut | 85-2601 | PULLEY |
| Nut | 85-2309 | RECTIFIER |
| Pulley | | |
| Rectifier | | |
| Regulator, Alt | | |
| Rotor | | |
| Screw | | COVER, SRE |
| Screw | 85-1205 | BRUSH HOLDER |
| Screw | 85-1205 | LEAD, STATOR |
| Screw | 85-1210 | BRUSH HOLDER |
| Spacer, Alt | | PULLEY |
| Thru Bolt | | |
