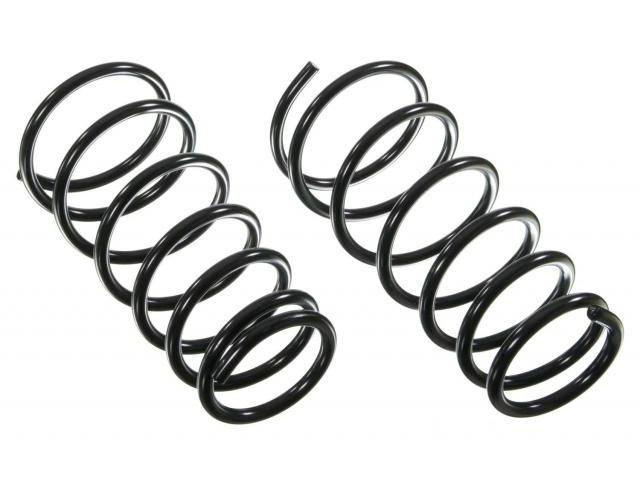

Airtex 80172 Coil Spring

Agricultural Equipment: N
Application Specific: Y
Bar Diameter - Inches: 0.51
Bar Diameter - MM: 13.1
Car/Light Truck: Y
End Type 1: Squared
End Type 2: Tangential
Engine Specific: N
Feature 1: Larger diameter bar and additional coils to reduce stress and fatigue.
Feature 3: Designed to lower stresses for longer service life.
Feature 4: All coil springs are 100% load tested.
Free Height - Inches: 14.38
Free Height - MM: 365.4
Freight Class: 85
Heavy Duty Truck: N
High Performance: N
ID - Inches: 4.92
ID - MM: 125.1
Industrial Off Highway Equipment: N
Installation Height - Inches: 9
Installation Height - MM: 228.6
Load - lbs: 646
Marine: N
Medium Duty Truck: N
Motorcycle ATV: N
Non Vehicle Specific: N
Personal Watercraft: N
Small Engine: N
Snowmobile: N
Spring Rate - lbs per inch: 120
Spring Type: Constant Rate
Transmission Specific: N
