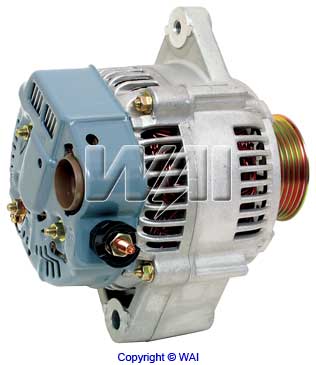

WAI 1-1029-01ND Alternator

WAI 1-1029-01ND Alternator

Alternator - Nippondenso IR/IF
80 Amp/12 Volt, CW, 6-Groove Pulley
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

8EL 737 902-001

HELLA 8EL 737 902-001 Alternator

1390102409

JP GROUP 1390102409 Alternator

115762

HC-Cargo 115762 Alternator

0 986 037 460

BOSCH 0 986 037 460 Alternator

933626

EDR 933626 Alternator

H145-40

ASHUKI H145-40 Alternator

89212373

PowerMax 89212373 Alternator

L 43 140

ATL Autotechnik L 43 140 Alternator

14.201.189

AES 14.201.189 Alternator

6306

SPIDAN 6306 Alternator

210399

ERA 210399 Alternator

12060150

EUROTEC 12060150 Alternator
     配件名称:WAI编号:零件所在位置:
        Bracket, Cable Positioner
                        Repair Ring, Slip Ring28-82850
                        Sleeve, Packaging89-916
                Bearing, Ball10-2021-4WFRAME, SRE
                Bearing, Ball10-3042-4WFRAME, DE
                Brush, Alt38-8201
                Coil, Rotor
                Core, Rotor
                Cover, Alt46-82700BEARING, SRE
                Cover, Alt46-82400BRUSH HOLDER ASSY, ALT
                Diode, Neg32-8917
                Diode, Pos32-8918
                Fan, Rotor
                Fixture, TesterVRC101-11S
                Frame, DE, Alt 21-8213
                Harness, Repair, Alt46-82807REGULATOR
                Plug, Adapter, Alt
                Repair Circuit, RegulatorTRI220-B2
                Retainer, Bearing, Alt
                Retainer, Bearing, Alt46-82500
                Screw85-1209RETAINER, BEARING
                Screw85-1208RETAINER, BEARING
                Slip Ring, Rotor28-82853
                Spacer, Alt FRAME, DE
                Spacer, Rotor 28-82408
                Spring, Brush, Alt39-82700
                Stator27-8204
                Stud, Alt46-82150RETAINER, BEARING, BALL
                Thru Bolt85-1403
        Bracket, Cable Positioner
        Brush Holder Assy, Alt39-8203-3
        Capacitor 46-82101
        Connector, Alt46-82300GRD STUD TO RECTIFIER
        Cover, Alt46-82460FRAME, SRE
        Cover, Alt46-82458FRAME, SRE
        Frame, DE & Stator Assy
        Frame, SRE
        Gasket, Alt41-82101BRUSH HOLDER ASSY
        Grommet, Alt41-82302STATOR
        Insulator, Alt42-82310TERMINAL, BATTERY
        Nut85-2300COVER, SRE
        Nut85-2300THRU BOLT
        Nut85-2601PULLEY
        Nut85-2310TERMINAL, BATTERY
        Pulley24-82260
        RectifierINR402P
        Regulator, Alt
        Regulator, AltIN220
        Rotor28-8202
        Screw85-1316CONNECTOR TO RECTIFIER
        Screw85-1205BRUSH HOLDER
        Screw85-1205LEAD, STATOR
        Screw85-1210REGULATOR
        Seal, Alt41-82306BRUSH HOLDER ASSY
        Washer, Spring FRAME, SRE
02Alternator1-1029-01ND
