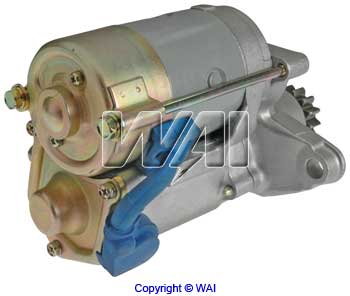

WAI 2-1055-ND Starter

WAI 2-1055-ND Starter

Starter - Nippondenso OSGR
1.0kW/12 Volt, CCW, 13-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

107678

FARCOM 107678 Starter

6035648.1

SANDO 6035648.1 Starter

48214246

ARTEC 48214246 Starter

9 000 695 008

BOSCH 9 000 695 008 Starter

913538

EDR 913538 Starter

A 74 490

ATL Autotechnik A 74 490 Starter

440811

ALANKO 440811 Starter

DRZ5132

DELCO REMY DRZ5132 Starter

1990334

DELCO REMY 1990334 Starter

F 042 005 014

BOSCH F 042 005 014 Starter

254942

AD KüHNER 254942 Starter

600000168310

MAGNETI MARELLI 600000168310 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str61-8202
                                Retainer, Soln66-82760
                                Rivet84-3917
                        Bearing, Ball6-104-4
                        Brush, Str68-8201
                        Bushing, Str CLUTCH
                        Contact, Movable, Soln66-82650
                        Contact, Stationary, Sol66-82756BATTERY
                        Contact, Stationary, Sol66-82756MOTOR
                        Insulator, Str72-82400EXTERNAL
                        Insulator, Str72-82409INTERNAL
                        Nut85-2402BATTERY TERMINAL
                        Nut85-2402MOTOR TERMINAL
                        O-Ring71-82512BATTERY TERMINAL
                        O-Ring71-82512MOTOR TERMINAL
                        Repair Kit, Soln79-82101
                        Roller, Str54-81501
                        Sleeve, Soln
                        Spring, Clutch, Str Driv54-82602
                        Terminal Post, Soln66-82350MOTOR
                        Terminal Post, Soln66-82351BATTERY
                        Washer, Spring
                Bearing, Ball6-102-4ARMATURE, FRONT
                Bearing, Ball6-608-2ARMATURE, REAR
                Brush, Str68-8210FIELD
                Brush, Str68-8210GROUND
                Clutch, Str Drive4-1000
                Coil, Soln66-82457
                Collar, Stop, Str76-82807
                Contact & Plunger Assy66-82607
                Contact Set, Stationary BATTERY
                Contact Set, Stationary MOTOR
                Cover, Soln
                Gasket, Soln66-82401COVER
                Grommet, Str71-82306
                Insulator, Soln
                Insulator, Str FIELD COIL
                Pinion, Str Drive54-82207
                Retainer, Str
                Retaining Ring, Str76-82806
                Shaft, Drive
                Spring, Brush, Str69-82701
                Spring, Str Drive
                Terminal, Soln76-82554SWITCH
                Terminal 76-89550
                Terminal76-82577
        Ball, Steel, Str76-82802
        Boot, Str71-82301FIELD COIL
        Brush Holder Assy, Str69-8210
        Drive, Str54-8218
        Field Case Assy, Str
        Frame, CE, Str
        Gear, Str
        Housing, DE, Str
        Nut TERMINAL, MOTOR, SOLENOID
        Nut85-2402TERMINAL, BATTERY, SOLENOID
        Retainer, Str76-82804ROLLER, PINION
        Roller, Str76-82805
        Screw BRUSH HOLDER
        Screw HOUSING, DE
        Spring, Plunger, Str66-82552
        Switch, Solenoid
        Thru Bolt
        Washer, Lock TERMINAL, BATTERY, SOLENOID
